 Our facility has a wide range of equipment for machining and heat treatment processes, for the manufacture of heavy metalworking equipment .

 1

Furnace for normalization
20 mt x 8 mt x 8 mt
Natural gas and ACPM
Up to 1500oF

 2

Rolling Machine
Minimum diameter to roll : 610mm
Maximum thickness : 57mm
Maximum working width : 3048mm

 3

Multiple Cutting Equipment
Ox gas
Automatic CNC. KOIKE Brand
Maximum thickness 127 mm.
Cutting table 2438mm x 6100mm
with 6 simultaneous nozzles

 4

Radial Drills
Vertical Displacement
Drilling Capacity: Maximum
Diameter 101 mm

 5

Shear machine
Max .thickness: 12mm. Max.
Width: 3658 mm
Hydraulic Presses:
“Press Brake”

 6

Vertical Lathe
Vertical Titan Lathe Diam 4000 mm
Vertical King Lathe Diam. 3660 mm.
Max Turning Height : 2460 mm.
Fine Finish.

 7

Horizontal Milling machines
Width : 1,200 mm
Length : 4,000 mm
Height: 1,100 mm

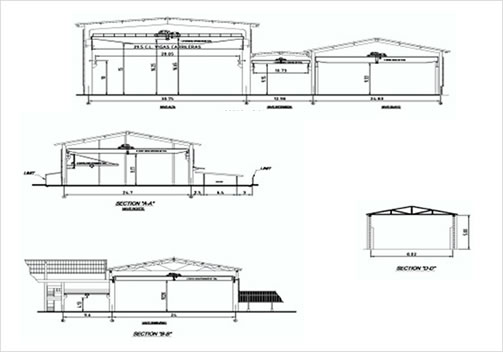

 maquinaria3

CAPACITY
Total area : 24.720 m2
No. of shops : Seven.  ( 7 )
Maximum operating capacity:
Oxicutting (koike) :

5 inches (127 mm ) thick, carbon and

low –alloy steel

Rolling of plates : 2 inches (51 mm) thick stainless steel
Rolado       : To 2-1 / 4 inches (57 mm) thick and 120 inches wide (3048 mm)
Soldadura  : It is able to perform the following welding processes: SMAW, GMAW, FCAW, SAW, GTAW
Perforating : Perforating
Vertical l athe   :

Up to 4 mt diam, 2.46 mt High and 10

ton.

Horizontal lathe :

Up to 1.50 mt Diam., 3.5 mt length

and 3 tons weight

Milling : 4 mt long ; 1.4 mt width y 40 tons

Thermal stress

relief

:

Up to 8 mt width, 8 mt high, 21 mt long

and 1.400 F.

Non destructive

test

:

Our personnel is certified to execute

the following tests: RT, MT, UT, PMI,

PT.
